Stainless Steel Cameras, SE-2012

Value. Resourcefulness. Innovation.

 Industrial/Chemical Process Cameras

Camera products for environmentally demanding applications.  Products, documentation, services etc. designed for use in heavy industrial process facilities primarily for viewing process applications to assist plant operators. All products are built to meet industrial standards and needs and to sustain environments normally destructive to common security camera products.

     *Free consulting is available from the factory for all industrial camera applications.  Contact us for more information.

SE Stainless Camera Enclosure and Accessories

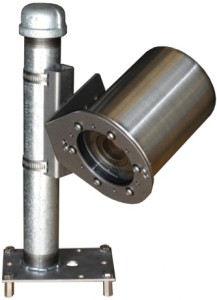

SE-2012 camera

SE-2012 Stainless camera

SE-2012 with pressure gage

Gas Tight Seal Testing





  • New Stainless steel GAS-TIGHT sealed camera only 6”(152mm) long x 4.1”(105mm) dia.
  • Pressure gauge shows camera’s superior gas-tight seal.
  • Seal integrity exceeds IP68 as well as “weather tight” camera products.
  • Bass Electronics SE series Corrosive Area Stainless Steel Cameras deliver exceptional live CCTV viewing of industrial areas with corrosive gasses, excessive moisture, high dust content, excessive shock/vibration and high temperature

Bass Electronics AE Series Corrosive Area O-ring sealed Cameras deliver exceptional real time CCTV viewing of industrial areas with corrosive gasses, excessive shock/vibration and high temperatures. (Reduce camera maintenance expense and difficulties by using Bass Electronics AE cameras.) (Shown to the left connected to Bass Electronics MPXXxS series unique side mount) Contact us for more information.

Bass Electronics MSE-USFK 1/3 Series Mounts for AE & SE Cameras (Shown above with camera enclosures attached) are easily installed to ANY round, vertical structures like ceilings, platforms, I beams, channel, pipe racks, purling, or other flat horizontal or vertical surfaces. Contact us for more information.

Stainless Steel Cameras, SE-2012 Available with:

• Video:

• Analog video output

• IP Ethernet video output

 Lens Types

• Vessel Viewing Camera Option

Mount

MSE-USFK Mount

MSE-USFK with brackets crpd

MSE-USFK1 with WDS032 bands

Service Box

Service Box

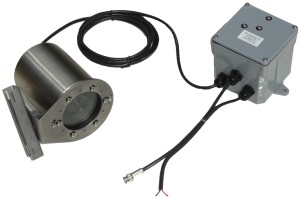

SE-2012 camera and SB6 series Service Boxes

SE-2012 camera, SB6-CT5 Service Box

SE-2012 camera & SB6-CT5 Service Box

Bass Electronics SB Series boxes provide a convenient location for 115/230V power and/or video connection terminations to Bass Electronics CF and SE cameras.

The IP68 Sealed cord and connector on some models protects the easily removable connections (see inset photo of camera connection).

Locating the user termination and primary test points outside the camera enclosure extends camera service life by preventing corrosion of camera circuitry and connections and provides a barrier to conduit related problems which often carry water and contaminants. Contact us for more information.

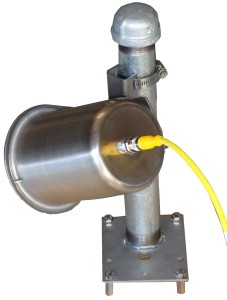

Avaliable IP68 underwater camera connectors provide ease of connection and superior sealing

Available IP68 underwater camera connectors provide ease of connection and superior sealing

Available with motorized pan and tilt device.

Available with motorized pan and tilt device.
